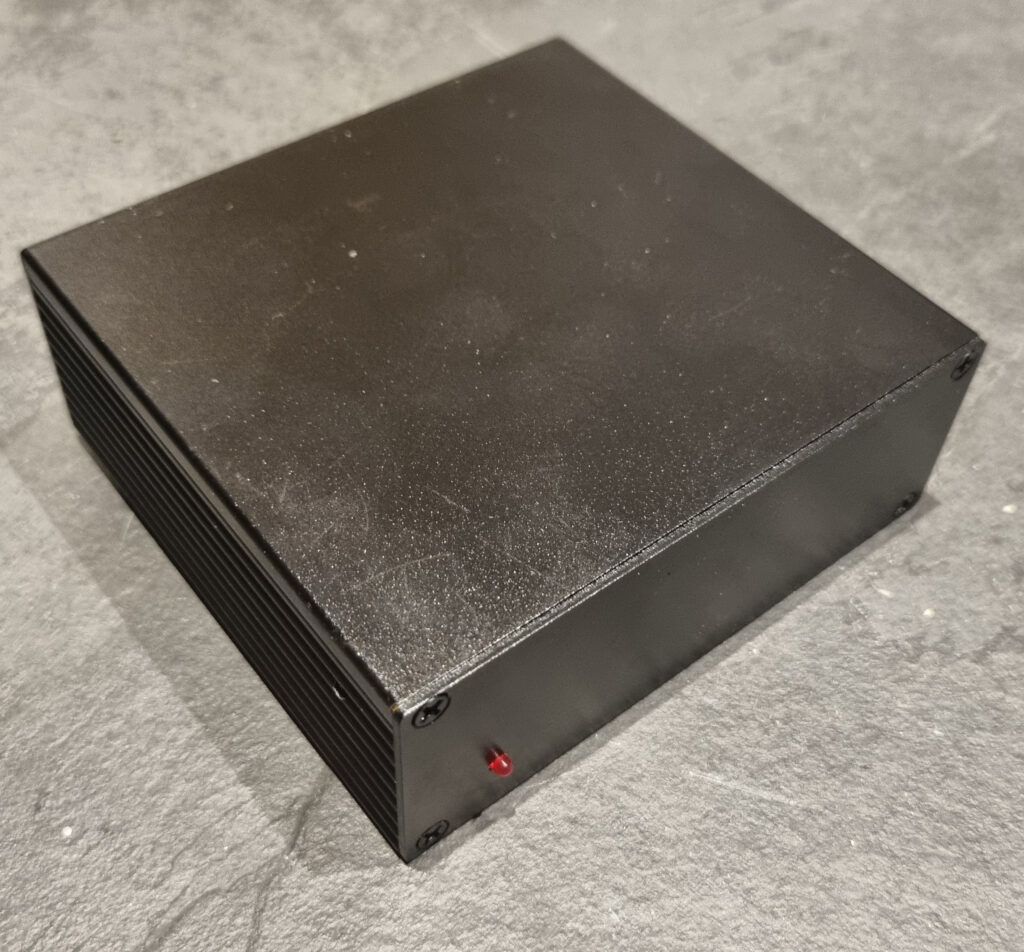

Ultralow Noise Linear Power Supplies
A range of brand ultralow noise linear power supplies designed to out-perform standard linear PSUs and at a pricepoint that is realistic!
All our miniature linear power supplies are linear supplies with dual-regulation and EMI supression filtering.
The power supply design features a toroidal transformer with discrete schottky rectifiers and over-specified Nichicon audio-grade capacitors.
We use two stages of regulation, with a first stage designed to provide a clean smooth power to the secondary filtering and regulators. This supply then passes through LC and ferrite filtering to eliminate any residual Electromagnetic Interference (EMI) before passing to ultralow noise LT3045 regulators, used in parallel to increase output capacity and provide world-class clean power supply.
The final result – a power supply that filters out almost all mains-borne EMI and delivers a noise performance on the output of only 0.8μV RMS across the whole audio frequency spectrum.
And all this in a tiny box measuring only 110mm x 104mm x 40mm

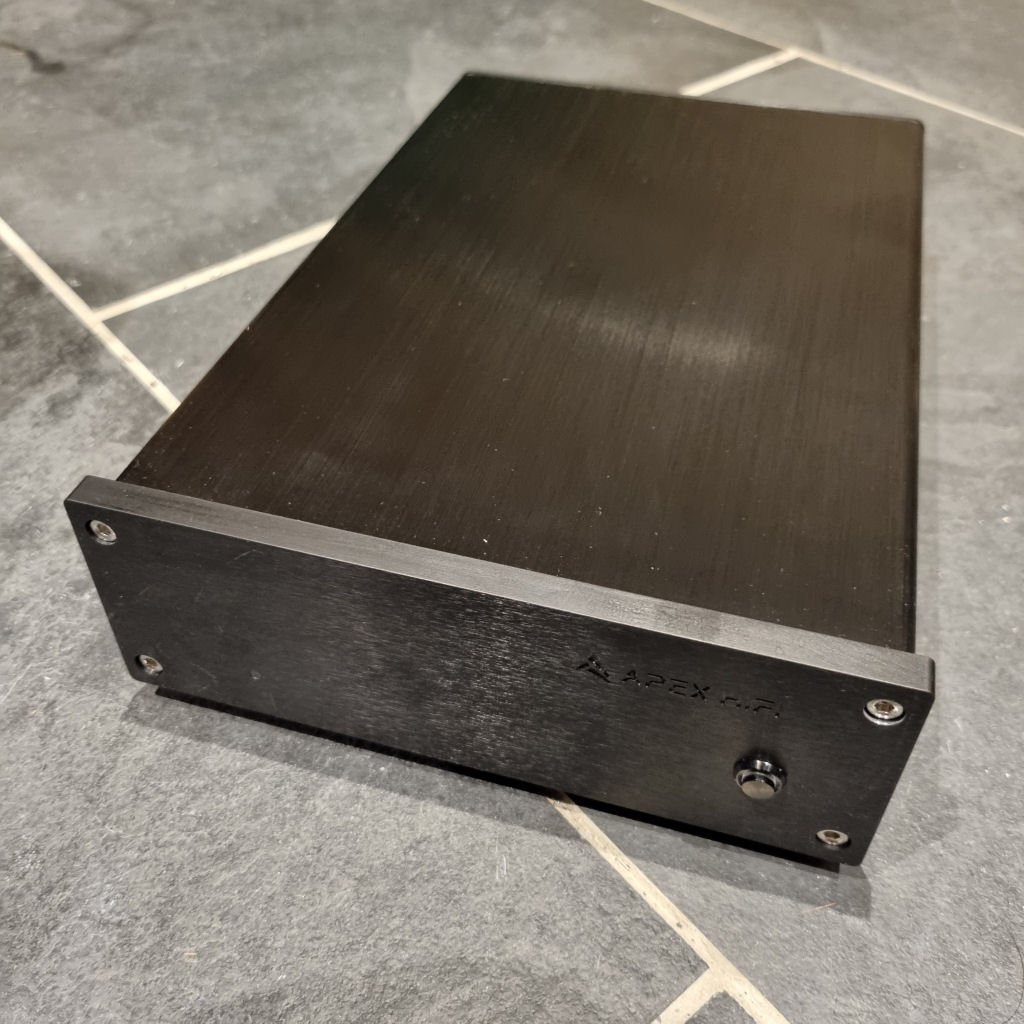

SuperCap PSU
SuperCapacitor fully isolated PSU
Our flagship power supply, offering unsurpassed Electromagnetic Noise isolation.
Utilising two switched banks of SuperCapacitors, the output of the power supply is permanently isolated from the mains input providing all of the isolation benefits of a battery supply without ever needing to recharge.
We use specially silenced reed relays to provide true isolation from the mains. Other similar designs use solid-state relays which conduct EMI at high frequencies due to the parasitic substrate capacitance inherent in their construction drastically reducing their effectiveness for this application.
Take a look at the design journey on our YouTube Channel
Outputs can be configured to meet your requirements. Available with any voltage output up to 15V @ 3A supplied via a GX16.2 aviation style 2-pin screened connector.
230V A.C. input (120V available on request)
Supplied with a UK Mains Lead

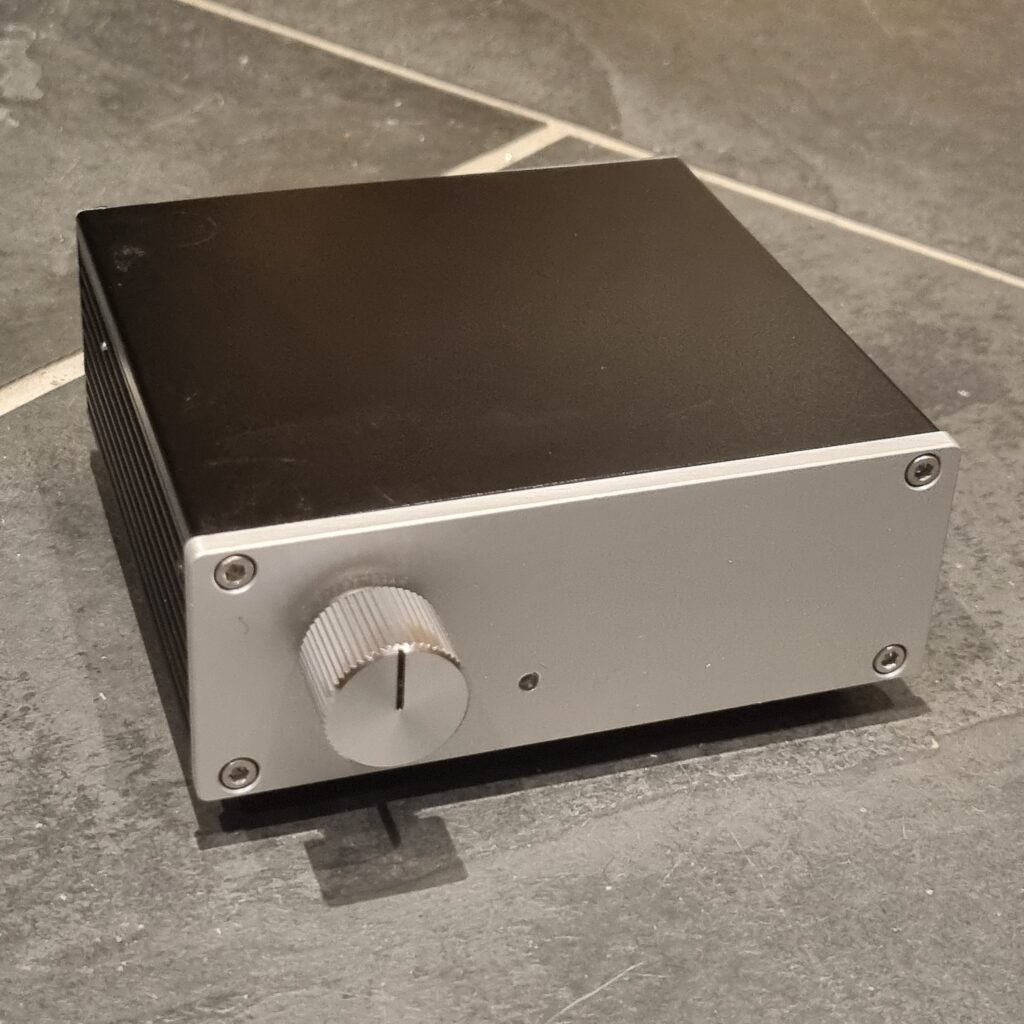

6 Channel Linear PSU
Ultra-low noise PSU with configurable outputs
6 completely independent output channels.
Outputs can be configured to meet your requirements by fitting one or more output cards.
We have a wide range of output cards available including 1A and 3A variants, with a wide ranges of voltages from 3.3V to 15V and various connector options.
230V A.C. input (120V available on request)
Supplied with a UK Mains Lead

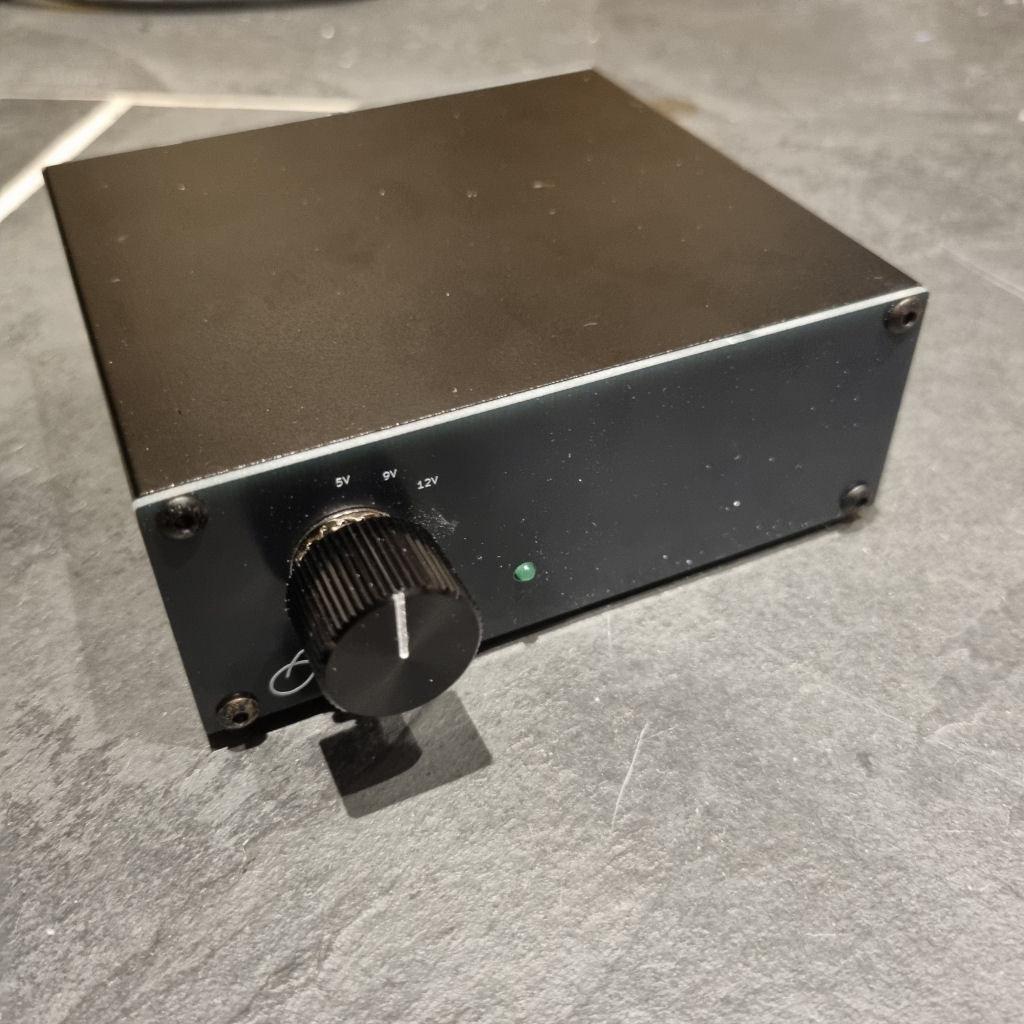

Switchable PSU
Switchable voltage 5V/9V/12V up to 3A Ultralow Noise Linear PSU
Switchable D.C. output voltage:
5V D.C. at 2.5A (3A peak)
9V at 1.5A
12V at 1.5A
Output via a standard 5.5/2.1mm D.C. Power Jack Socket or optionally via GX16 2-pin aviation connector
230V A.C. input (120V available on request)
Supplied with a UK Mains Lead

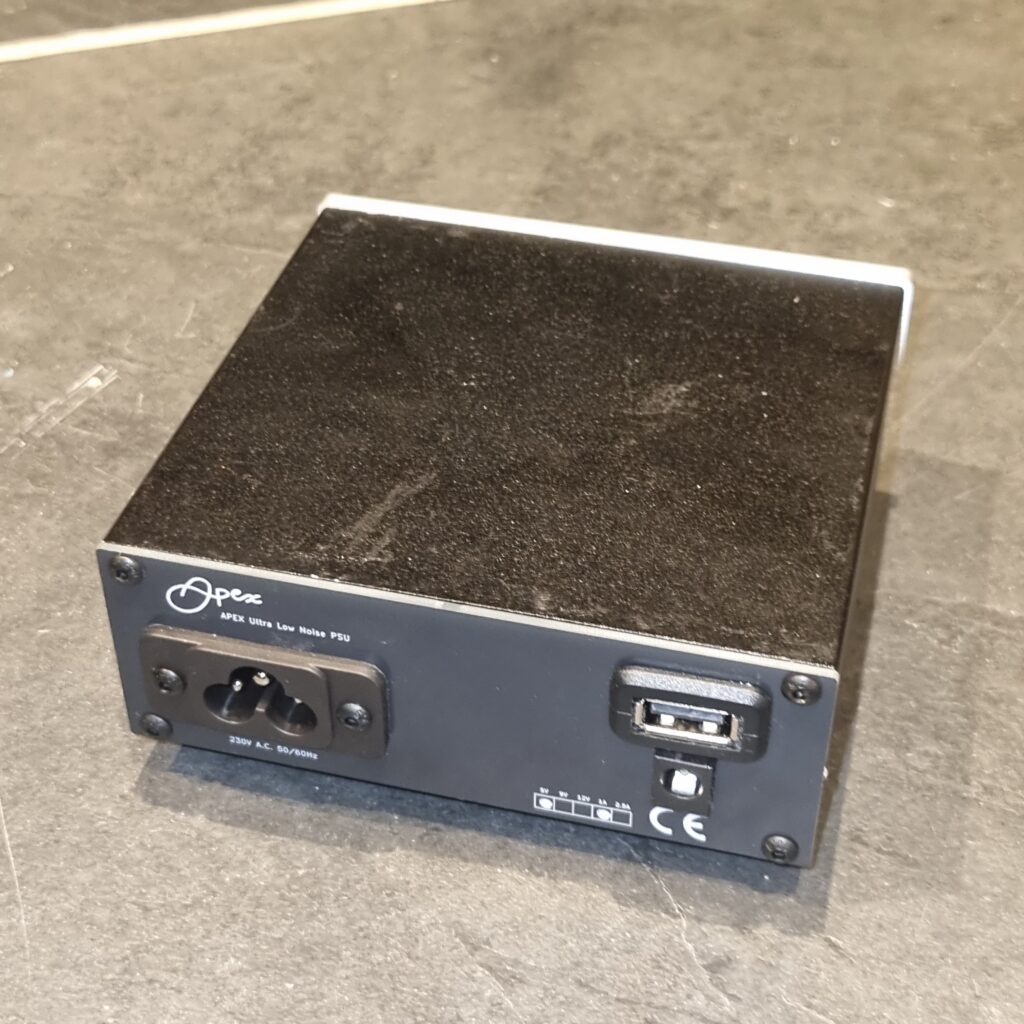

5V 1A PSU
5V 1A Ultralow Noise Linear PSU
5V D.C. Output at 1A
Output via a standard USB-A connector and via a 5.5/2.1mm D.C. Power Jack Socket
Optionally available with Screened GX-16 output
230V A.C. input (120V available on request)
Supplied with a UK Mains Lead

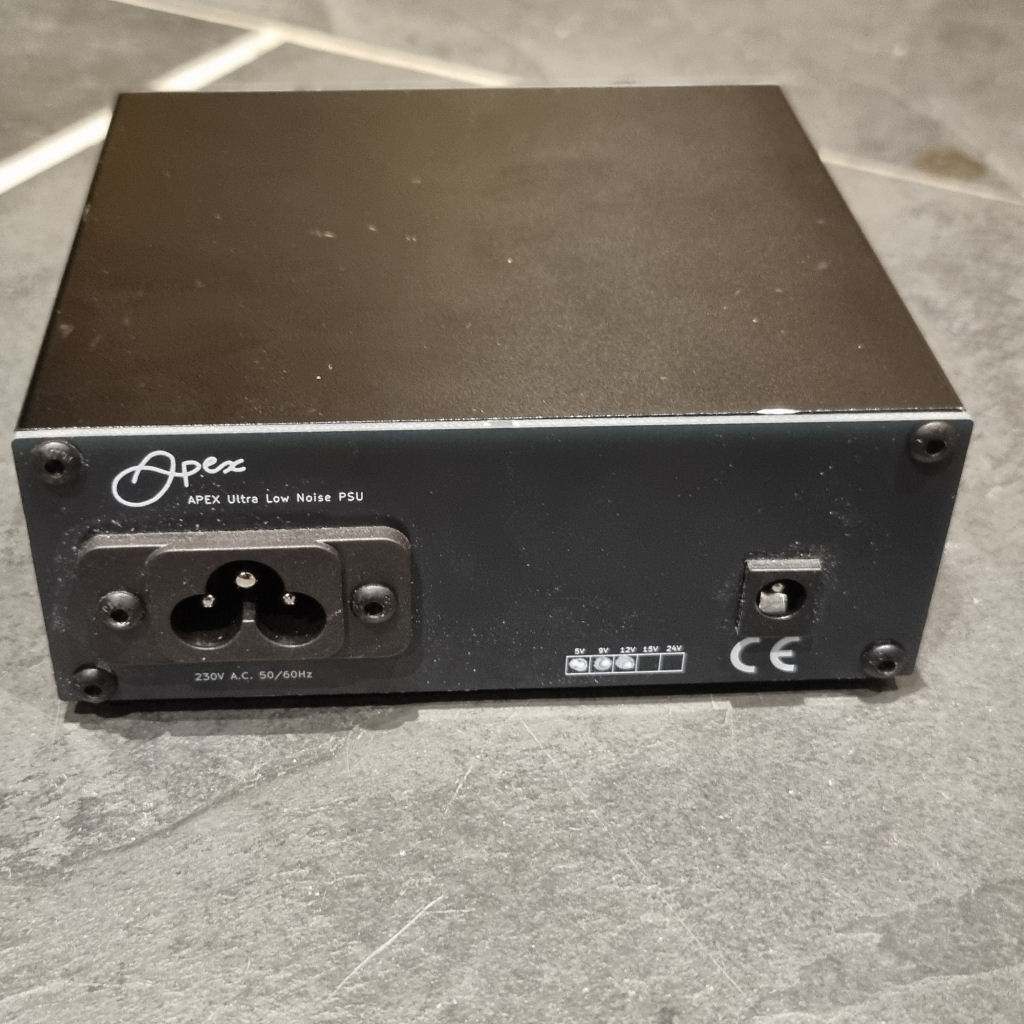

9V 1A PSU
9V 1A Ultralow Noise Linear PSU
9V D.C. Output at 1A
Output via a 5.5/2.1mm D.C. Power Jack Socket
230V A.C. input (120V available on request)
Supplied with a UK Mains Lead and 5.5/2.1mm jack cable. Other cables can be supplies on request – please Contact Us
12V 1A PSU
12V 1A Ultralow Noise Linear PSU
12V D.C. Output at 1A
Output via a 5.5/2.1mm D.C. Power Jack Socket
230V A.C. input (120V available on request)
Supplied with a UK Mains Lead and 5.5/2.1mm jack cable. Other cables can be supplies on request – please Contact Us
