Ultralow Noise Linear Power Supplies
A brand new 6 Channel ultralow noise linear power supply configurable to meet virtually any user requirements.
6 Completely independent output channels, electrically isolated from each other to reduce crosstalk and EMI issues.
The power supply design features a toroidal transformer with discrete schottky rectifiers and over-specified audio-grade capacitors.
We use two stages of regulation, with a first stage designed to provide a clean smooth power to the secondary filtering and regulators. This supply then passes through LC and ferrite filtering to eliminate any residual Electromagnetic Interference (EMI) before passing to the output cards which feature ultralow noise LT3045 regulators, used in parallel to increase output capacity and provide world-class clean power supply.
The final result – a power supply that filters out almost all mains-borne EMI and delivers a noise performance on the output of only 0.8μV RMS across the whole audio frequency spectrum.
And the best thing? It is completely configurable by fitting different output cards to meet virtually any voltage and current requirement with a range of connector options!
6 Channel Linear PSU
Ultra-low noise PSU with configurable outputs
6 completely independent output channels.
Outputs can be configured to meet your requirements by fitting one or more output cards.
230V A.C. input (120V available on request)
Supplied with a UK Mains Lead

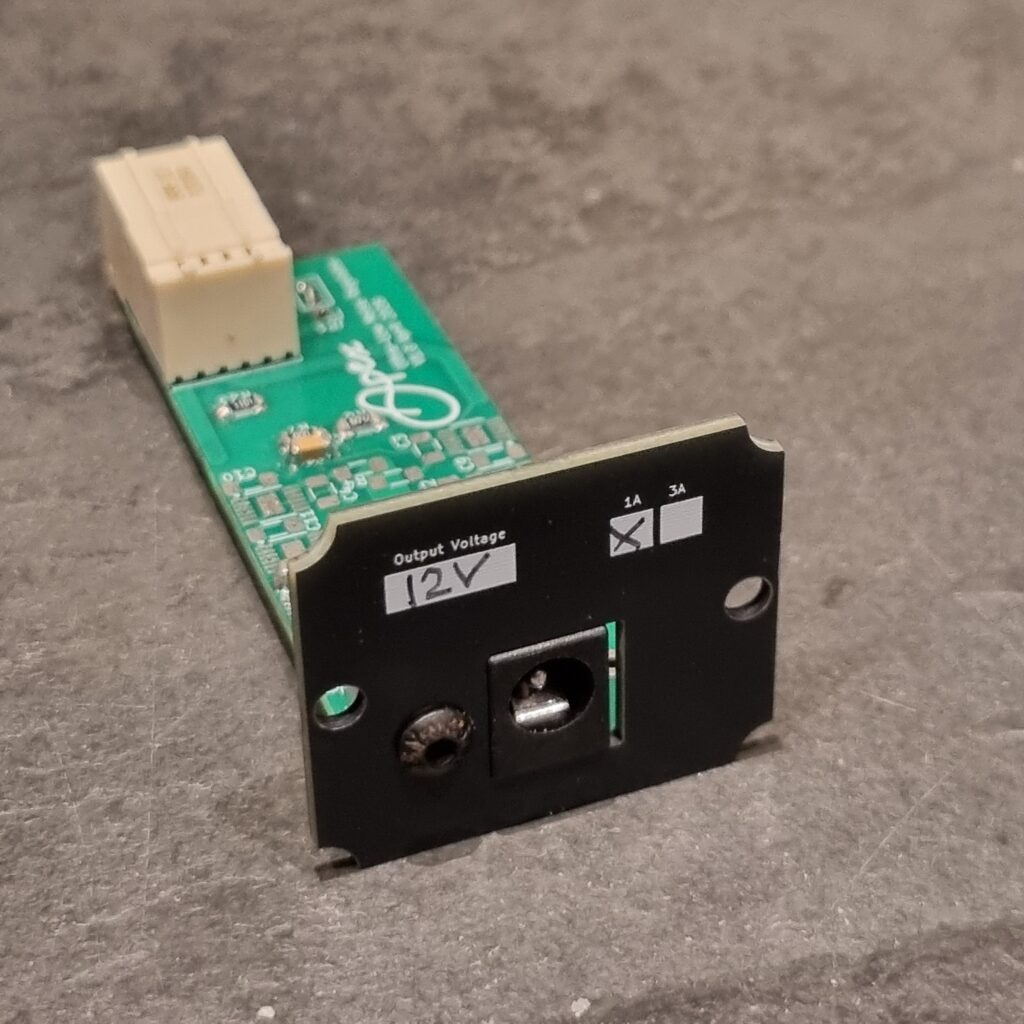

1A D.C. Jack Output Card
Ultra-low noise Output Card, 1A
1A Output
Wide voltage range availablw, up to 15V Max
5.5/2.1mm D.C. Power Jack Output
Ultralow RMS Noise: Up to 0.8μV RMS (10Hz to 100kHz)

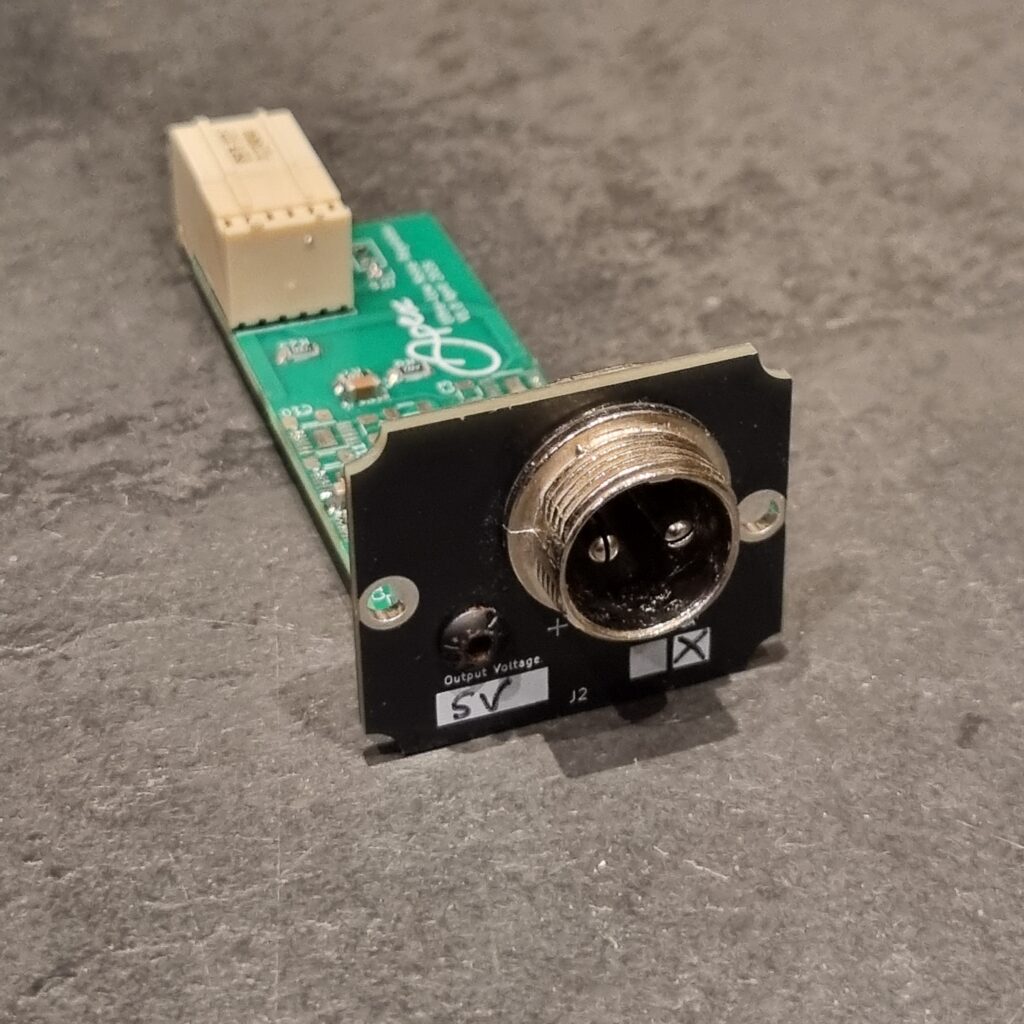

1A GX-16 Output Card
Ultra-low noise Output Card, 1A
1A Output
Wide voltage range available, up to 15V Max
GX-16 aviation grade connector, screened
Ultralow RMS Noise: Up to 0.8μV RMS (10Hz to 100kHz)

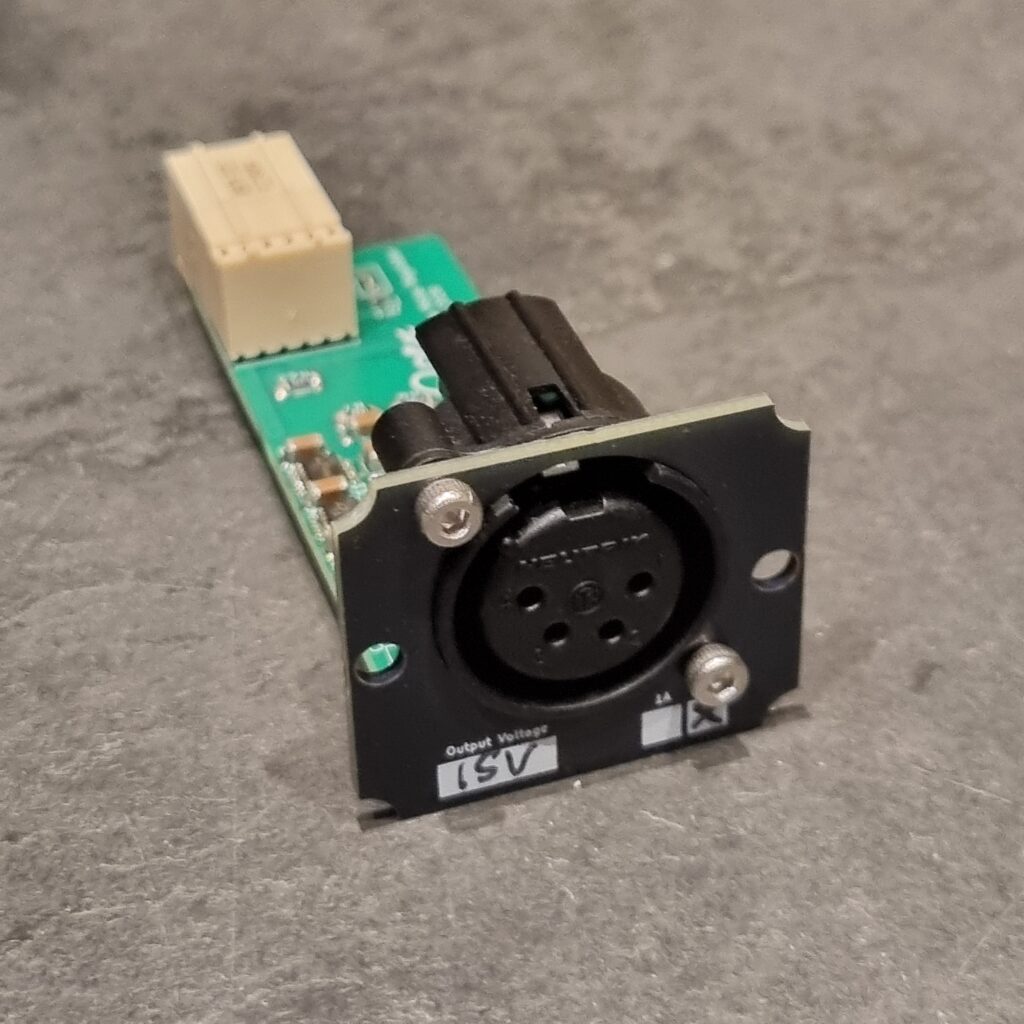

1A XLR Output Card
Ultra-low noise Output Card, 1A
1A Output
Wide voltage range available, up to 15V Max
4-pin XLR connector
Ultralow RMS Noise: Up to 0.8μV RMS (10Hz to 100kHz)
3A D.C. Jack Output Card
Ultra-low noise Output Card, 3A
3A Output
Wide voltage range availablw, up to 15V Max
5.5/2.1mm D.C. Power Jack Output
Ultralow RMS Noise: Up to 0.8μV RMS (10Hz to 100kHz)
3A GX-16 Output Card
Ultra-low noise Output Card, 3A
3A Output
Wide voltage range available, up to 15V Max
GX-16 aviation grade connector, screened
Ultralow RMS Noise: Up to 0.8μV RMS (10Hz to 100kHz)
3A XLR Output Card
Ultra-low noise Output Card, 3A
3A Output
Wide voltage range available, up to 15V Max
4-pin XLR connector
Ultralow RMS Noise: Up to 0.8μV RMS (10Hz to 100kHz)
